For multi-color printing on ready-made textiles (e.g., T-shirts) and pre-cut pieces, as well as for printing on other flat materials. For all printing paste systems. The extremely high registration accuracy of /- 0.025 mm leaves nothing to be desired. Whether photorealistic halftone printing or the finest line motifs, HEBBECKER printing machines offer you prints of the highest precision and absolutely consistent quality, regardless of the quantity to be printed. The robust construction, featuring state-of-the-art manufacturing technology, guarantees a trouble-free, long machine service life.
Machines and equipment for textile printing
The infrared dryer was designed for the rapid drying of water-based or plastisol textile printing inks. The tunnel is also suitable for drying solvent-based inks (epoxy, polyurethane) on IR-resistant surfaces (thermo-cured, metal, etc.). This system is available in the following standard widths: 80, 120, and 140 cm. Other widths can be manufactured upon request. •Teflon fiberglass belt, highly heat-resistant up to 250°C •Adjustable speed from 0.4 m/min to 6.5 meters/min •Tensioning device for the dryer belt for exact parallelism •Temperature regulation via electronic sensors and switches •Fume exhaust centrally located on the tunnel, 125 mm diameter •Sturdy metal frame mounted on four sturdy wheels for easy relocation of the tunnel •Adjustable opening height of the material passage for taller printing materials such as baseball caps

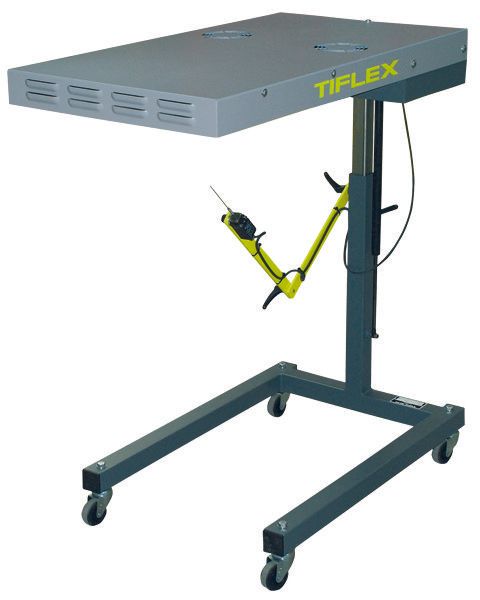

For intermediate drying of T-shirts, cotton bags, and other textiles. Solid frame made of painted steel, mobile with 4 wheels. 2 fans for cooling the IR heating elements. Switch for automatic start-up of the dryer. Height adjustment via gas pressure shock absorbers. Adjustable flash and cooling time. Connection for compressed air for cooling. Drying format 40 x 40 cm: • 3 or 6 IR heating elements selectable • 6 KW/12 KW maximum power consumption • 400 volts, 24 amps power consumption • 32 amps plug code I0651022 Drying format 60 x 40 cm: • 3, 6, or 9 IR heating elements selectable • 6 KW/12/18 KW power consumption • 400 volts, 32 amps

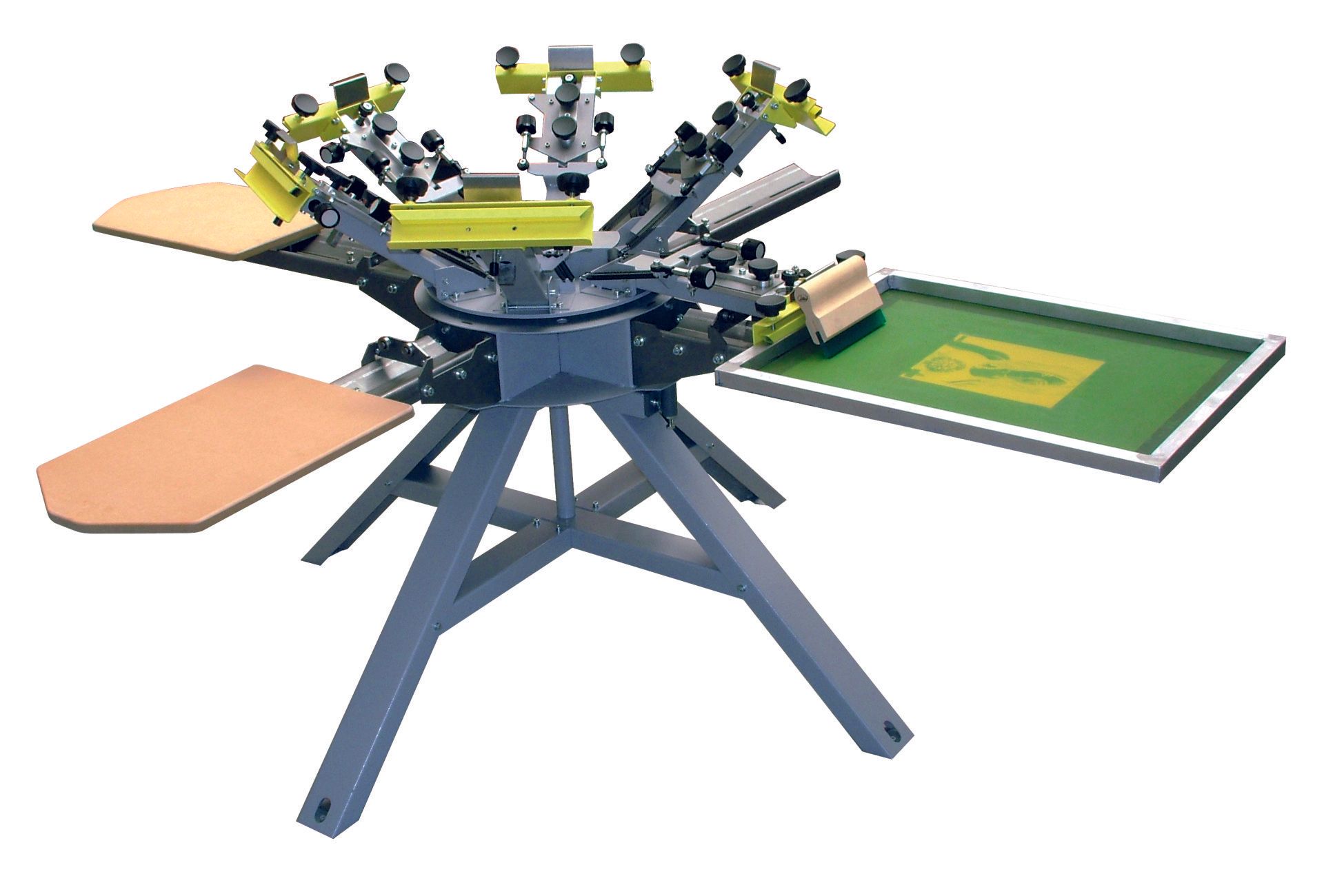

- For printing T-shirts, sweatshirts, cotton bags, and umbrellas.
- Solid frame made of painted steel.
- Rotatable holders for screens.
- Fine adjustment in X and Y axes
- Rotatable pallets for T-shirts
- 4 different sizes of boards available
- XXL, XL, L, and children's size
- Maximum print format 40 x 50 cm
- Maximum screen format 60 x 80 cm, profile 40/40 mm Article No. Description Weight 2367000LC Tiflex Textile Carousel 4/4-color 260 KG 2368004LC Tiflex Textile Carousel 6/4-color 260 KG 2368000LC Tiflex Textile Carousel 6/6-color 340 KG
With the UNITEX LC printing table, the user is able to print in one color on a variety of textiles. The screen format is a minimum of 30 cm x 40 cm and a maximum of 60 cm x 80 cm. Suitable profiles for this are 30 mm x 30 mm and 40 mm x 40 mm. The printing station is delivered packaged and can be assembled quickly and easily in just a few simple steps. It consists of a galvanized base section which is attached to a table. The table and printing station belong together. The screen frame is fastened to the holder with two screws. Two star grips make it easier to attach and remove the screen. The jump from the pallet to the screen is adjusted using an adjusting screw and secured with a lock nut. Each UNITEX package includes a medium-sized wooden pallet. You can find our selection below. We also offer pallets made of plywood with a melamine resin coating. Return springs hold the screen up when the textile is changed. The sliding OMEGA-shaped pallet is secured with two screws. This ensures repeatable printing accuracy. Thanks to the OMEGA mounting system, the pallet can be easily moved back and forth. Two locking screws ensure secure hold.
Machines from Hebbecker

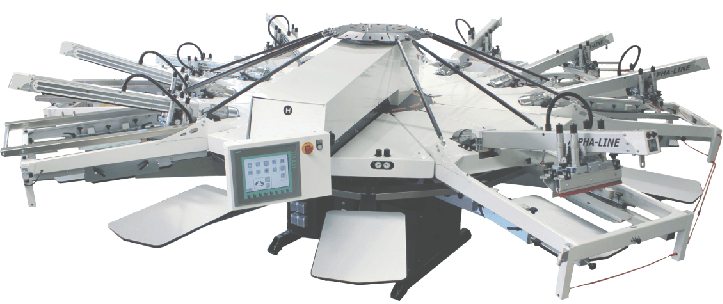

- 8 - 20 stations
- Maximum printing area 530x700mm (L)
- ALPHA-LINE-S 530x500mm
- ALPHA-LINE-XL 700x1,000mm
- Aluminum sandwich pallets

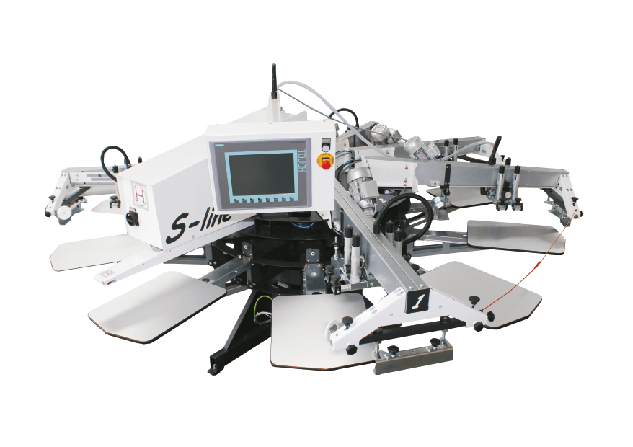

- 8 - 12 stations
- Max. printing area: 400x450mm
- Aluminum sandwich pallets

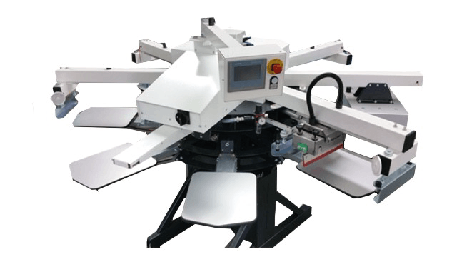

- 8 stations, 5 colors 1 flash
- Variable & compact, only 2.20m diameter
- 300x210mm printing area
